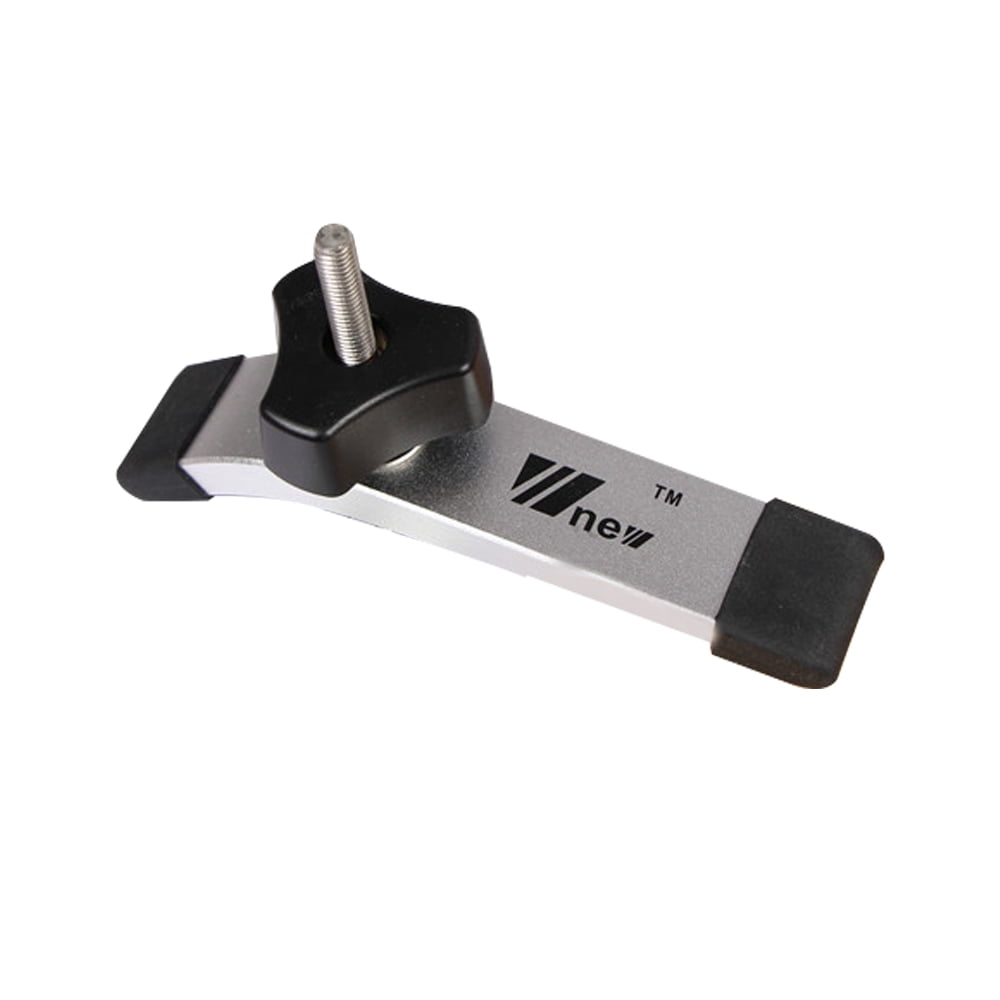

Our Clamping Kits are among the best in the world! All the blocks, bolts, nuts and hold-downs are case hardened. T-Slot Nuts, pk. Of 4, 7/16' Slot, 3/8' - 16 Item. Value Collection 21 Piece. Description: 21 Piece Adjustable Fixturing Clamp Set with 5/8' T-Slot, 1/2-13 Stud Thread - Type Adjustable Clamp Set Stud Thread Sizes 1/2-13 Number of Pieces. T-Slot Side Clamps The built -in T-slot nut on these side clamps lets you clamp a part to a machine table quickly. Their small footprint leaves more free space on your table than standard side clamps. Hold-Down Machine Table Clamps.
Inch
| Part No. | Cam Screw | T-Slot Size | B | C | D | E | F | G | H | I | J | Max Torque (Ft/Lbs) | Holding Force (Lbs) | Replacement Cam Screw Parts | Replacement Hex Washer Parts | Replacement T-Nut Parts |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10640 | 1/4-20 | 3/8 | 1/8 | 0.040 | 0.625 | 0.190 | 0.365 | 0.89 | 0.500 | 0.375 | 0.150 | 6.2 | 800 | 10365 | 10582 | 10714 |
| 10641 | 5/16-18 | 7/16 | 3/16 | 0.040 | 0.812 | 0.190 | 0.425 | 1.10 | 0.625 | 0.625 | 0.220 | 8.3 | 800 | 10367 | 10584 | 10715 |
| 10642 | 3/8-16 | 1/2 | 3/16 | 0.050 | 0.812 | 0.250 | 0.490 | 1.20 | 0.750 | 0.625 | 0.235 | 20.8 | 2,000 | 10371 | 10586 | 10716 |
| 10643 | 3/8-16 | 9/16 | 3/16 | 0.050 | 0.812 | 0.250 | 0.550 | 1.20 | 0.875 | 0.750 | 0.300 | 20.8 | 2,000 | 10371 | 10586 | 10717 |
| 10644 | 1/2-13 | 5/8 | 5/16 | 0.100 | 1.000 | 0.375 | 0.620 | 1.27 | 1.000 | 0.875 | 0.425 | 45.0 | 3,000 | 10373 | 10588 | 10718 |
| 10646 | 1/2-13 | 11/16 | 5/16 | 0.100 | 1.000 | 0.375 | 0.675 | 1.37 | 1.000 | 1.000 | 0.350 | 45.0 | 3,000 | 10373 | 10588 | 10719 |
9/16 T Slot Clamp Kit
Metric
14mm T Slot Clamp Kit For Mills
| Part No. | Cam Screw | T-Slot Size | B | C | D | E | F | G | H | I | J | Max Torque (N.m.) | Holding Force (N) | Replacement Cam Screw Parts | Replacement Hex Washer Parts | Replacement T-Nut Parts |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50642 | M6x1.00 | 8mm | 5mm | 1.01 | 15.86 | 4.75 | 8 | 23.2 | 12.7 | 9.5 | 4.6 | 8.55 | 3,558 | 50365 | 10582 | 50708 |
| 50644 | M6x1.00 | 10mm | 5mm | 1.01 | 15.86 | 4.75 | 10 | 23.2 | 14.2 | 14.2 | 4.3 | 8.55 | 3,558 | 50365 | 10582 | 50710 |
| 50646 | M8x1.25 | 12mm | 5mm | 1.01 | 20.62 | 4.75 | 12 | 27.9 | 15.9 | 15.9 | 6.4 | 11.30 | 3,355 | 50367 | 10584 | 50712 |
| 50648 | M10x1.50 | 14mm | 7mm | 1.52 | 20.62 | 6.35 | 14 | 30.5 | 22.4 | 22.2 | 8.5 | 28.00 | 8,895 | 50369 | 10586 | 50714 |
| 50650 | M12x1.75 | 16mm | 8mm | 2.03 | 25.40 | 9.53 | 16 | 30.9 | 25.4 | 22.2 | 9.2 | 61.00 | 13,340 | 50371 | 10590 | 50716 |
| 50652 | M12x1.75 | 18mm | 8mm | 2.03 | 25.40 | 9.53 | 18 | 34.7 | 28.6 | 28.6 | 10.5 | 61.00 | 13,340 | 50371 | 10590 | 50718 |
| 50654 | M16x2.00 | 20mm | 12mm | 2.54 | 30.15 | 12.70 | 20 | 39.2 | 31.8 | 31.8 | 12.6 | 135.00 | 26,680 | 50373 | 10592 | 50720 |
| 50656 | M16x2.00 | 22mm | 12mm | 2.54 | 30.15 | 12.70 | 22 | 44.3 | 34.9 | 41.3 | 12.5 | 135.00 | 26,680 | 50373 | 10592 | 50722 |
